The Primo AD-RIE® system is AMEC’s second-generation dielectric etch product. Built upon the proven D-RIE architecture, the system embodies new proprietary designs featuring advanced capabilities such as a switchable dual-low-frequency RF generator, multi-zone gas distribution, and dual-chiller temperature control system. To maximize productivity, the AD-RIE system employs a cluster tool design that can be configured with up to three dual-station process modules (or six processing stations) per system. The AD-RIE product delivers the most advanced capabilities for new generation IC device manufacturing requirements, world wildly used for 40-7nm BEOL applications, and 10nm FEOL applications development and production. Furthermore, AMEC developed Primo AD-RIE series products: Primo AD-RIE-e and Primo AD-RIE-cr. Primo AD-RIE-e is configured with step-by-step temperature control 4-zone dynamic ESC, which helps improve etch uniformity and selectivity with wider process window. The Primo AD-RIE-cr features corrosion resist chamber with AMEC’s proprietary surface coating technology, which offers solutions for dielectric, metal and metal oxide complicated structure etch.

    <tbody id='fff4d'></tbody>

    • <tfoot id='fff4d'></tfoot>

        <legend id='fff4d'><style id='fff4d'><dir id='fff4d'><q id='fff4d'></q></dir></style></legend>
        <i id='fff4d'><tr id='fff4d'><dt id='fff4d'><q id='fff4d'><span id='fff4d'><b id='fff4d'><form id='fff4d'><ins id='fff4d'></ins><ul id='fff4d'></ul><sub id='fff4d'></sub></form><legend id='fff4d'></legend><bdo id='fff4d'><pre id='fff4d'><center id='fff4d'></center></pre></bdo></b><th id='fff4d'></th></span></q></dt></tr></i><div id='fff4d'><tfoot id='fff4d'></tfoot><dl id='fff4d'><fieldset id='fff4d'></fieldset></dl></div>
            <bdo id='fff4d'></bdo><ul id='fff4d'></ul>
                • .c3_pro_t {
    float: right;    width: 45%;    position: inherit;
	margin-top:56px;
}
.c3_pro_t img{
    width:100%;
}


			@media screen and (max-width: 1024px){
.c3_pro_t {
    width: 100%;
}

}.ctwo_xq .ctwo_text{
height:auto}

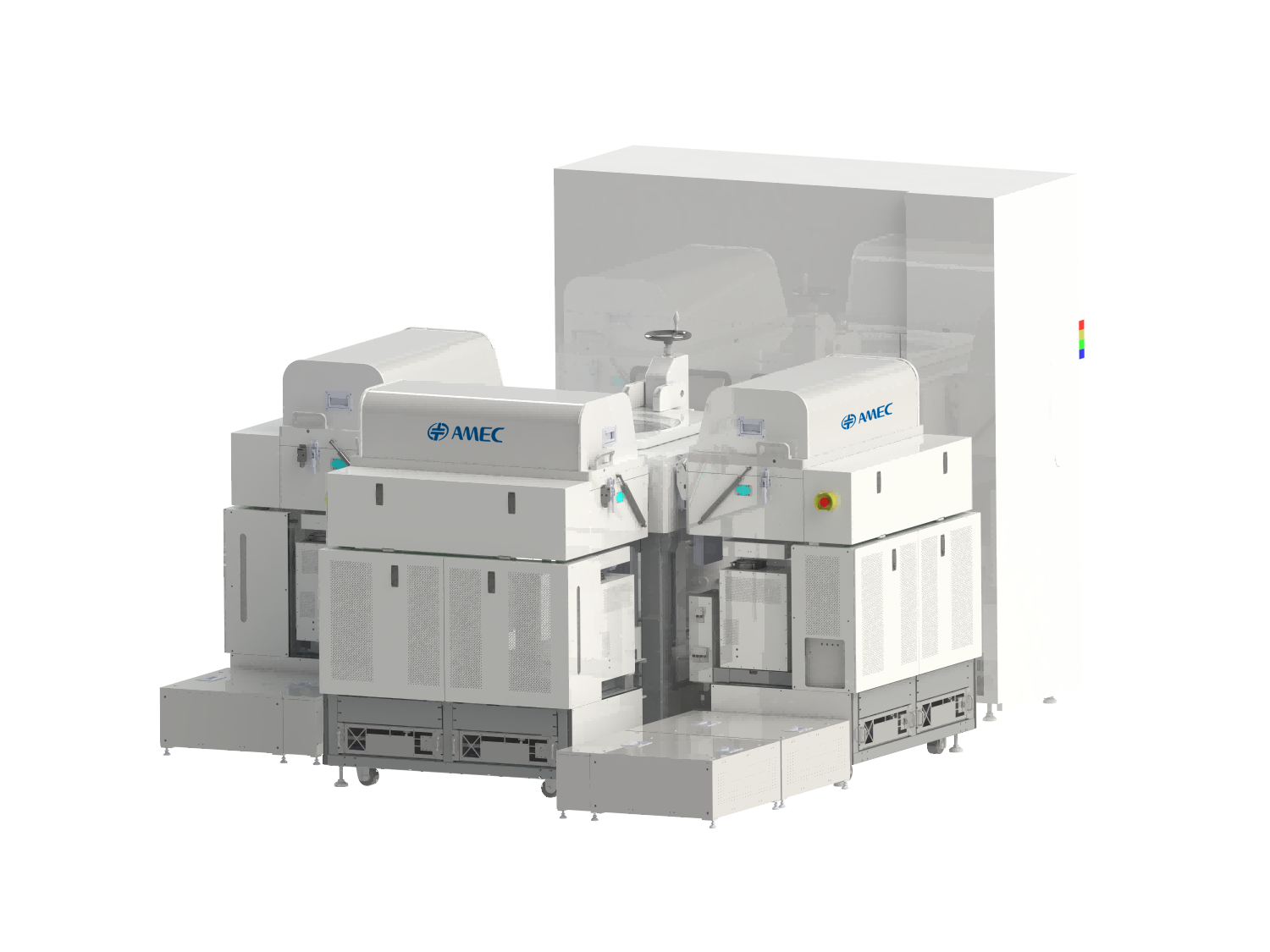

                Primo AD-RIE®
                Innovative solutions for semiconductor device fabrication at 40nm to 7nm nodes
                Products Features
                Dual-station chamber design with more effective throughput
                Switchable bias RF system for by-step recipe control
                Pulsing RF system as option
                Multi-zone gas distribution system
                Dual zone ESC for temperature control
                Dynamic ESC option for step-by-step temperature control (Primo AD-RIE-e)
                Corrosion resist chamber with proprietary surface coating technology (Primo AD-RIE-cr)
                Integrated strip capability and surface charge reduction capability (Primo iDEA® System)
                Competitive Advantages
                In-situ high-and-low bias-frequency switch system, for wider process window (especially Trench/Via All-in-one applications)
                Excellent process control, tunability and stability for advanced processing criteria
                High throughput and low cost of ownership (CoO)
                Series products for various typical applications: Primo A
